How to Install a Double Drapery Rod with Finials
A double drapery rod hangs sheers and drapes together: a front rod for drapes and a back rod for sheers, finished with decorative finials. Unlike a double rod with French returns, both rods here rest directly in the same end brackets, so there's no separate socket-bracket step. Installation takes about 45–60 minutes per window and comes down to four parts: marking and mounting the end brackets, assembling the rods, adding the rings, and hanging both layers. Before you begin, read through the full guide so you know what to expect at each step. If you have any questions along the way, contact us at [email protected], and we'll help you through it.
What You'll Need
- Ladder
- Tape measure
- Pencil
- Level
- Screwdriver
- Power drill
- 7/64" drill bit
- 1/4" hex socket bit
- Wood screws (included; #8 x 2")
- Snap Toggles and machine screws (included, for hollow walls)
Before you start, lay out your hardware by window and confirm every piece is there; a double rod set includes both a front and back rod, so double-check you have two of each rod-specific part. Read through all the steps once before drilling; a couple of decisions (splicing the rod, adding a center bracket) are easier to plan for upfront than to redo.
A Note on Mounting Hardware
The screw holes in Shade Love brackets are ¼" in diameter, which gives a little wiggle room for leveling. Which screws you use depends entirely on what's behind your wall:
- Mounting into a stud or header: use the included #8 x 2" wood screws.
- Mounting into hollow drywall or plaster: use the included Snap Toggles with 3/16"-24 machine screws instead. Wood screws alone won't hold securely in hollow wall material; full Snap Toggle instructions are in the appendix below.
Using the wrong hardware for your wall type is the most common installation mistake, and it's worth the extra minute to check before you drill.
Step 1: Mark the End Bracket Positions
- Start from the left edge of your window and find where two measurements intersect: subtract one inch from your ordered left stack width (this accounts for the finial's overhang), then measure up to your mounting height. For example, a 10" left stack width and a 100" mounting height means marking 9" horizontally and 100" vertically upward.
- Mark the position with a pencil.
- Check that it's level before moving to the next side.
Repeat on the right side using the same measurements, so both brackets land at matching heights. The double rod bracket has a bit more depth than a single rod bracket to accommodate both the front and back rod. Note the bracket depth protrusion when you're checking clearance against the wall or window frame.
Step 2: Install the End Brackets
- Into a stud or header: use the wood screws.
- Into hollow drywall or plaster: use Snap Toggles and machine screws (see appendix).
Step 3: Assemble the Rod
If either rod ships spliced into two pieces (common for wider windows), join the pieces with the internal splice connector before mounting.
- Loosen the set screws on the rod ends using the provided 3/32" Allen key.
- Insert the splice connector, a short piece of tubing slightly narrower than the rod, halfway into each rod end.
- Re-tighten the set screws.
- Check that the tops of both rod segments sit flush; adjust the set screws if they don't.
If your rods are single unspliced pieces, skip to Step 4.

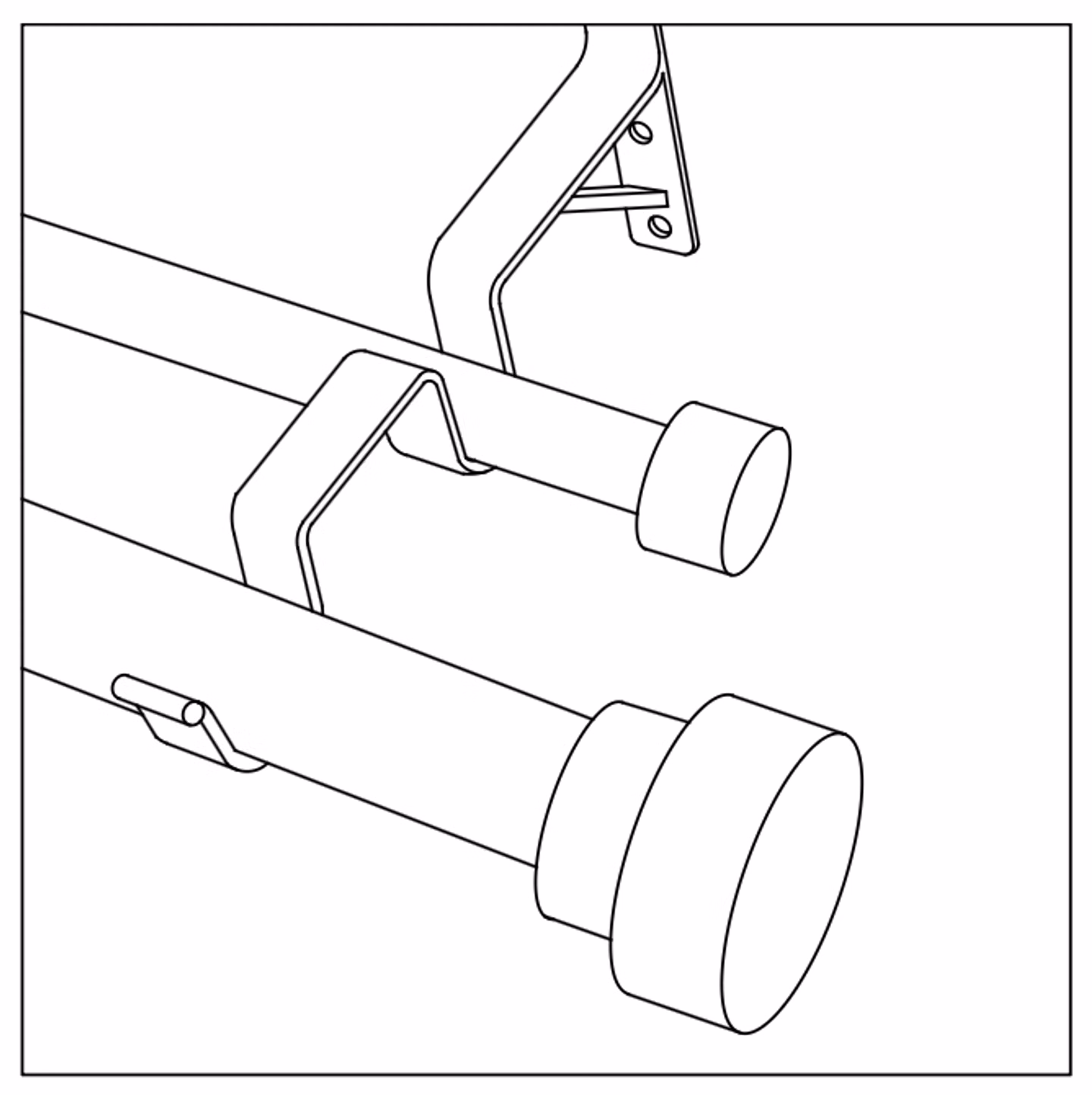

Step 4: Place the Front and Back Rods in the End Brackets
With both end brackets installed, lift the front rod (finials facing out) and the back rod into place, and seat them both in the brackets. Since finial-style brackets hold both rods directly — unlike French return brackets, which use a separate socket sleeve for the back rod — this step is just a matter of resting each rod into its designated slot in the bracket.
Step 5: Install a Center Bracket (If Your Rod Is Spliced)
Not every installation needs this step; skip it if your rods are single unspliced lengths. If you spliced a rod in Step 3, add a center bracket at the splice point for support.
Hold the center bracket up to find its mounting position and mark it with a pencil. You can do this with the rod resting in the end brackets or on its own. Use the same hardware rule as Step 2: wood screws for a stud, Snap Toggles and machine screws for drywall or plaster.
Step 6: Add the Rings
Slide rings onto the rod, one ring for every hook on your drapery panels. If your rod is spliced with a center bracket, split the rings evenly between the two sides before threading your panels on.
Step 7: Hang the Sheers and Drapes
Hang sheers first, on the back rod, then drapes on the front rod. Starting from the leftmost ring, thread the leftmost hook of your panel through the ring's eyelet until it's fully secured. Work your way across, repeating for any additional panels on each rod.
Questions about your installation? We're here to help. Contact us at [email protected] or book a free consultation, and we'll walk you through it.

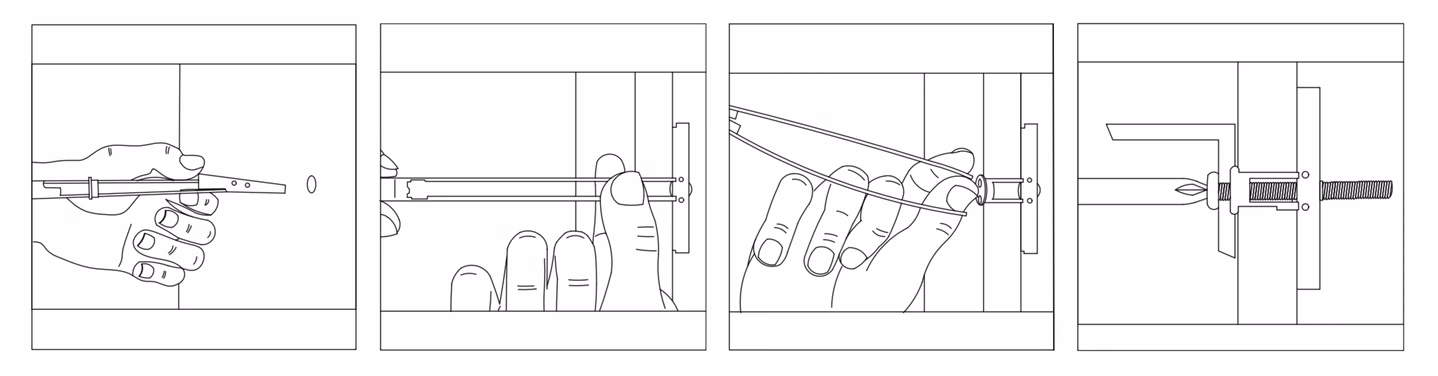

Appendix: Snap Toggle Instructions (for Hollow Walls)
Use this method any time you're mounting into drywall or plaster rather than a stud.
- Drill a ½" hole. Hold the metal channel flat alongside the plastic straps and slide it through the hole. You'll need at least 1⅞" of clearance behind the wall for the toggle to open.
- Hold the ends of the straps between your thumb and forefinger and pull toward you until the channel sits flush behind the wall. With your other hand, slide the plastic cap along the straps until its flange is flush with the wall.
- Snap the straps off at the wall by pushing them side to side, breaking them level with the cap's flange.
- Place the bracket over the flange, insert the machine screw, and tighten until snug against the bracket, then stop. Overtightening can strip the toggle.
FAQs

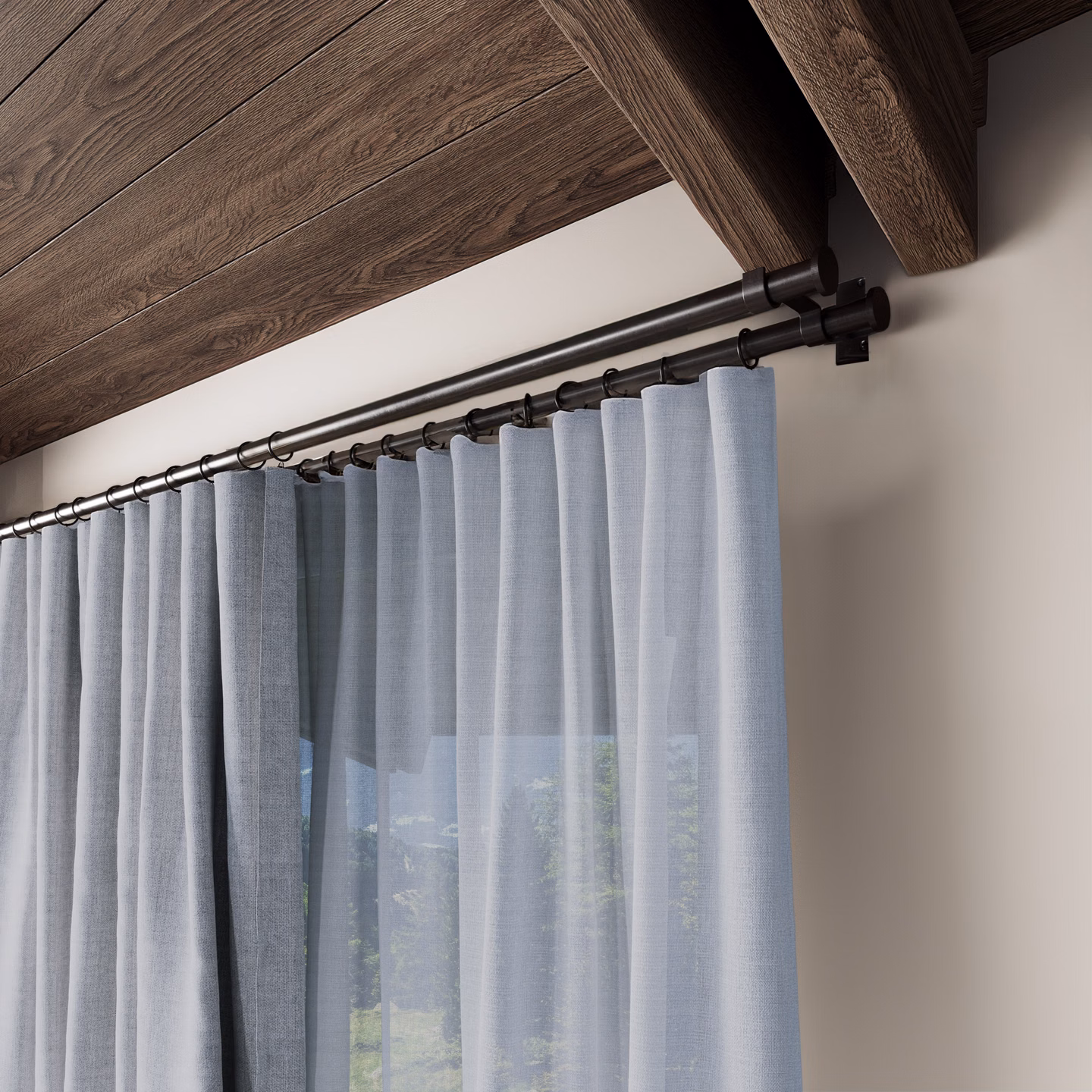

Q: What's the difference between a double rod with finials and a double rod with French returns?
A: Both hang sheers on a back rod and drapes on a front rod. The difference is in how the back rod attaches: with finials, both rods rest directly in the same end bracket. With French returns, the back rod connects through a separate socket bracket built into the return leg. Finial-style installs have one fewer mounting step as a result.
Q: What is the back rod for on a double rod set?
A: The back rod is designed to hold sheers, while the front rod holds your drapery panels.
Q: Do I hang the sheers or the drapes first?
A: Hang sheers first, on the back rod. Then hang your drapery panels on the front rod.
Q: Do I need a stud to install a double drapery rod, or can I mount into drywall?
A: Either works, but the hardware is different. Use the included wood screws for a stud or header. For hollow drywall or plaster, use the included Snap Toggles and machine screws instead; they're rated to hold securely without a stud behind them.
Q: How do I figure out where to mount the end brackets?
A: Start from the left edge of your window and subtract one inch from your ordered left stack width; that accounts for the finial's overhang. Mark that horizontal distance, then mark your mounting height vertically. Check the position with a level before drilling.
Q: Do I need a center bracket for my rod?
A: Only if a rod is spliced into two pieces to span a wider window. A single unspliced rod doesn't need one.
Q: Can I install this myself, or do I need a professional?
A: Most people install a double rod with finials in under an hour with basic hand tools: a drill, level, and screwdriver. A double rod has more parts than a single rod (two rods instead of one), so a second person helps when holding everything level while marking bracket positions.
