How to Install a Double Drapery Rod with French Returns
A double drapery rod hangs sheers and drapes on the same bracket set, a front rod for drapes and a back rod for sheers, both finished with French returns that turn back to the wall to close the light gap at the sides. Installation takes about 45–60 minutes per window and comes down to five parts: assembling the front rod, attaching the return legs, mounting the brackets, adding the back rod, and hanging both layers. Before you begin, read through the full guide so you know what to expect at each step. If you have any questions along the way, contact us at [email protected], and we'll help you through it.
What You'll Need
- Ladder
- Tape measure
- Pencil
- Level
- Screwdriver
- Power drill
- 7/64" drill bit
- 1/4" hex socket bit
- Wood screws (included; #8 x 2")
- Snap Toggles and machine screws (included, for hollow walls)
Before you start, lay out your hardware by window and confirm every piece is there; a double rod set has more parts than a single rod, including the socket brackets that hold the back rod. Read through all the steps once before drilling; a couple of decisions (splicing the rod, adding a center bracket) are easier to plan for upfront than to redo.
A Note on Mounting Hardware
The screw holes in Shade Love brackets are ¼" in diameter, which gives a little wiggle room for leveling. Which screws you use depends entirely on what's behind your wall:
- Mounting into a stud or header: use the included #8 x 2" wood screws.
- Mounting into hollow drywall or plaster: use the included Snap Toggles with 3/16"-24 machine screws instead. Wood screws alone won't hold securely in hollow wall material; see the full Snap Toggle instructions in the appendix below.
Using the wrong hardware for your wall type is the most common installation mistake, and it's worth the extra minute to check before you drill.
Step 1: Assemble the Front Rod
If your rod ships spliced into two pieces (common for wider windows), join them with the internal splice connector before mounting.
- Loosen the set screws on the rod ends using the provided 3/32" Allen key.
- Insert the splice connector, a short piece of tubing slightly narrower than the rod, halfway into each rod end.
- Re-tighten the set screws.
- Check that the tops of both rod segments sit flush; adjust the set screws if they don't.
If your rod is a single unspliced piece, skip to Step 2.
Step 2: Attach the Return Legs
The return legs are what give the front rod its French return, the piece that turns the corner back to the wall.
Loosen the set screw on the bottom of each return leg, insert the post, then tighten it again. Make sure the set screws face downward once installed, so they stay out of view.
Step 3: Mark the Post Bracket Positions
- Measure out from the left outer edge of your window to find where your desired stack width (how far the drapery will sit outside the window frame) and mounting height intersect.
- Hold the rod up to the wall at that position and mark the post bracket locations with a pencil, keeping the backplate vertical.
Repeat for the right side, then double-check that both marks are level with each other before drilling.
Step 4: Install the Post Brackets
Remove the rod from the brackets, confirm your marks are level, then mount:
- Into a stud or header: use the wood screws.
- Into hollow drywall or plaster: use Snap Toggles and machine screws (see appendix).

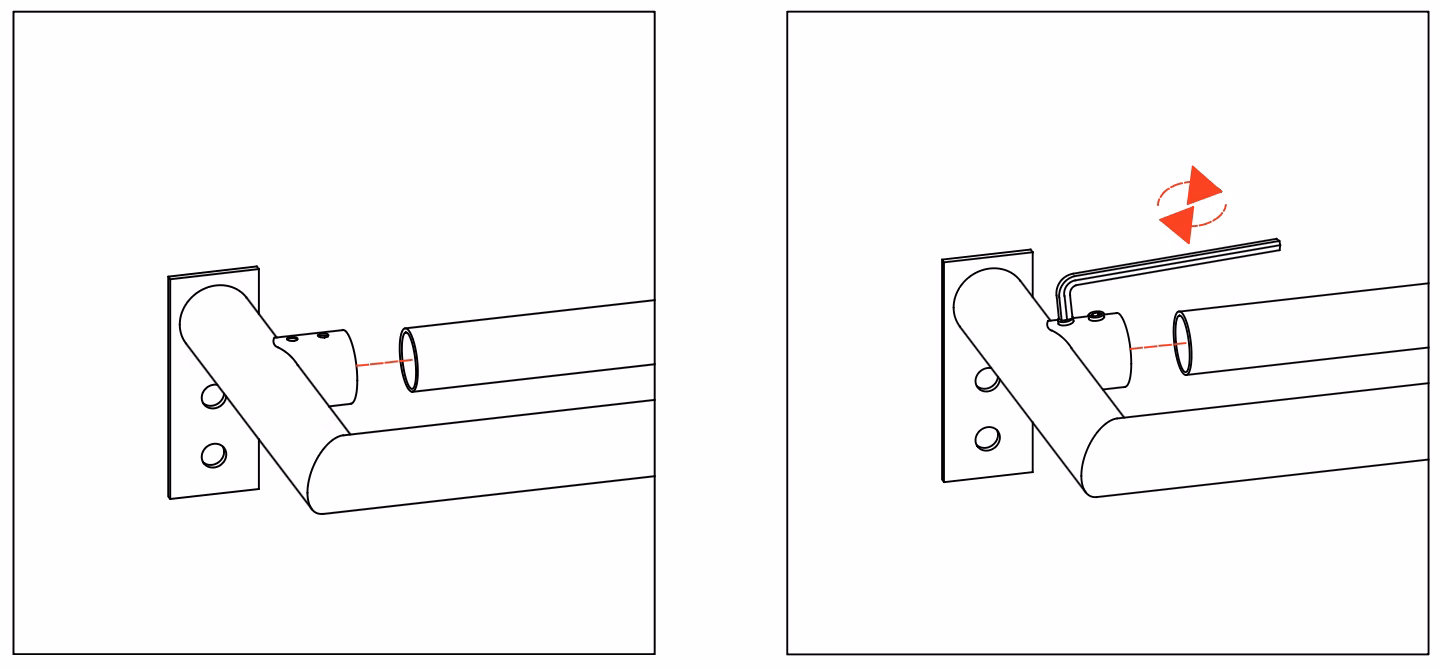

Step 5: Install the Back Rod Using the Socket Brackets
This step is unique to double rod sets; it's what lets the rod carry a sheer layer behind your drapery panels.
- The socket bracket backplates come pre-installed on the inside walls of the return legs, so there's nothing extra to mount here.
- Loosen both set screws on the socket sleeve using the 3/32" Allen key.
- Slide the socket sleeve over the back rod, hold the rod end up to the backplate, slide the sleeve back over the backplate, and re-tighten both set screws.
Step 6: Install a Center Bracket (If Your Rod Is Spliced)
Not every installation needs this step; skip it if your rod is a single unspliced length. If you spliced the front rod in Step 1, add a center bracket at the splice point for support.
Hold the center bracket up to find its mounting position and mark it with a pencil; you can do this with the rod resting in the end brackets or on its own. Use the same hardware rule as Step 4: wood screws for a stud, Snap Toggles and machine screws for drywall or plaster.
Step 7: Add the Rings
Slide rings onto the rod, one ring for every hook on your drapery panels. If you added a center bracket, split the rings evenly between the two sides before threading your panels on.
Step 8: Hang the Sheers and Drapes
Hang sheers first, on the back rod, then drapes on the front rod. Starting from the leftmost ring, thread the leftmost hook of your panel through the ring's eyelet until it's fully secured. Work your way across, repeating for any additional panels on each rod.
Questions about your installation? We're here to help. Contact us at [email protected] or book a free consultation, and we'll walk you through it.
Appendix: Snap Toggle Instructions (for Hollow Walls)
Use this method any time you're mounting into drywall or plaster rather than a stud.
- Drill a ½" hole. Hold the metal channel flat alongside the plastic straps and slide it through the hole. You'll need at least 1⅞" of clearance behind the wall for the toggle to open.
- Hold the ends of the straps between your thumb and forefinger and pull toward you until the channel sits flush behind the wall. With your other hand, slide the plastic cap along the straps until its flange is flush with the wall.
- Snap the straps off at the wall by pushing them side to side, breaking them level with the cap's flange.
- Place the bracket over the flange, insert the machine screw, and tighten until snug against the bracket, then stop. Overtightening can strip the toggle.
FAQs
Q: What's the difference between a single and double drapery rod?
A: A single rod holds one layer of drapery. A double rod adds a second, recessed rod behind the front one; typically used to hang sheers behind drapery panels, so you can layer light control with a finished, tailored look.
Q: What is the back rod for on a double rod set?
A: The back rod is designed to hold sheers, while the front rod holds your drapery panels. The socket brackets that support the back rod are pre-installed on the return legs, so you're just sliding the rod into place rather than mounting anything new.
Q: Do I hang the sheers or the drapes first?
A: Hang sheers first, on the back rod. Then hang your drapery panels on the front rod.
Q: What are French returns on a drapery rod?
A: French returns are the short end pieces that turn a drapery rod back toward the wall instead of stopping in open air. They close the light gap at the sides of the window and give panels a more finished, tailored look when closed.
Q: Do I need a stud to install a double drapery rod, or can I mount into drywall?
A: Either works, but the hardware is different. Use the included wood screws for a stud or header. For hollow drywall or plaster, use the included Snap Toggles and machine screws instead; they're rated to hold securely without a stud behind them.
Q: How many rings do I need for my drapery panels?
A: Match the number of rings to the number of hooks on your drapery panel. If you're using a center bracket to support a spliced rod, split the rings evenly between both sides before hanging your panels.
Q: Can I install this myself, or do I need a professional?
A: Most people install a double rod with French returns in under an hour with basic hand tools: a drill, level, and screwdriver. A double rod has a few more parts than a single rod (the socket brackets and back rod), so a second person helps when holding the rod level while marking bracket positions.
