How to Install Cordless Roller Shades

Installing your Shade Love cordless roller shades is a straightforward process that most customers complete on their own without professional help. Before you begin, read through the full guide so you know what to expect at each step. If you have any questions along the way, contact us at [email protected], and we'll help you through it.

Gather these tools before you start:

• Ladder
• Tape measure
• Pencil
• Level
• Screwdriver
• Power drill
• Screws (included with your order)
• Mounting brackets (included with your order)

Note: Fasteners are not included because different wall and window frame surfaces require different fasteners. If you're mounting into drywall without hitting a stud, you'll need appropriate wall anchors — available at any hardware store.

Before installation, organize your hardware by window and confirm all parts are present. Each window should have its own set of brackets and hardware. Lay everything out before you begin so nothing is missing mid-installation.

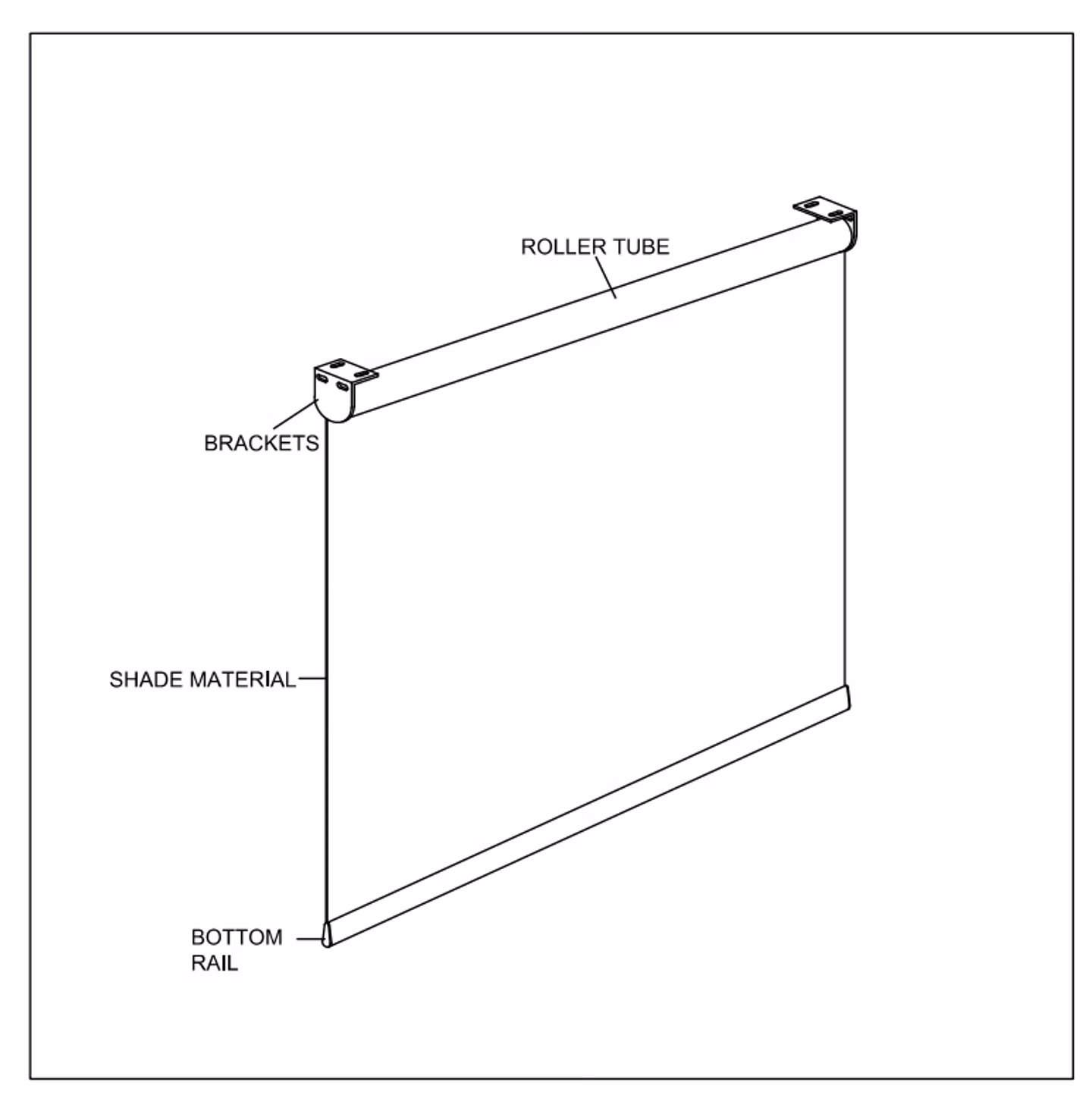

Take a moment to familiarize yourself with the parts of your roller shade:

• Roller tube — the cylindrical tube at the top that the shade fabric wraps around
• Brackets — the mounting hardware that holds the roller tube in place
• Shade material — the fabric panel
• Bottom rail — the weighted bar at the bottom of the shade that keeps it taut

Decide whether you are doing an inside mount or an outside mount before marking any screw locations.

Inside mount — brackets are installed onto the window frame itself, inside the recess. The shade sits within the frame for a clean, recessed look.

Outside mount — brackets are installed on the wall or ceiling above the window frame. The shade covers the frame and surrounding wall area.

Once you've decided on your mount type, use a pencil and the mounting brackets to mark the screw locations on the surface. Make sure both brackets are at the same height; use your level to confirm before drilling.

Important: Ensure the surface you're mounting into is sturdy enough to support the brackets. For wall mounting, locate wood studs where possible. For window frame mounting, the frame itself is typically sufficient for the included screws.

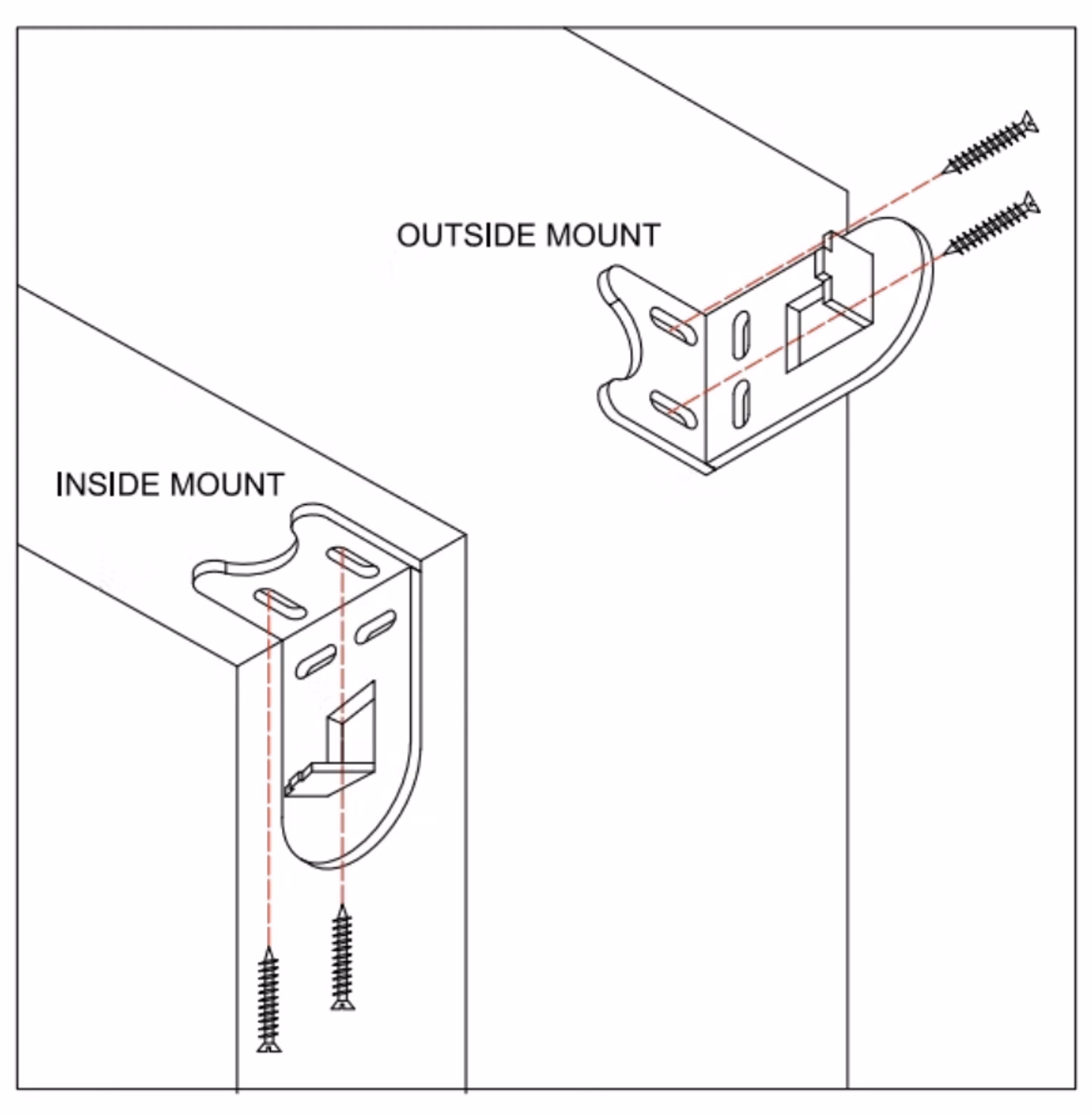

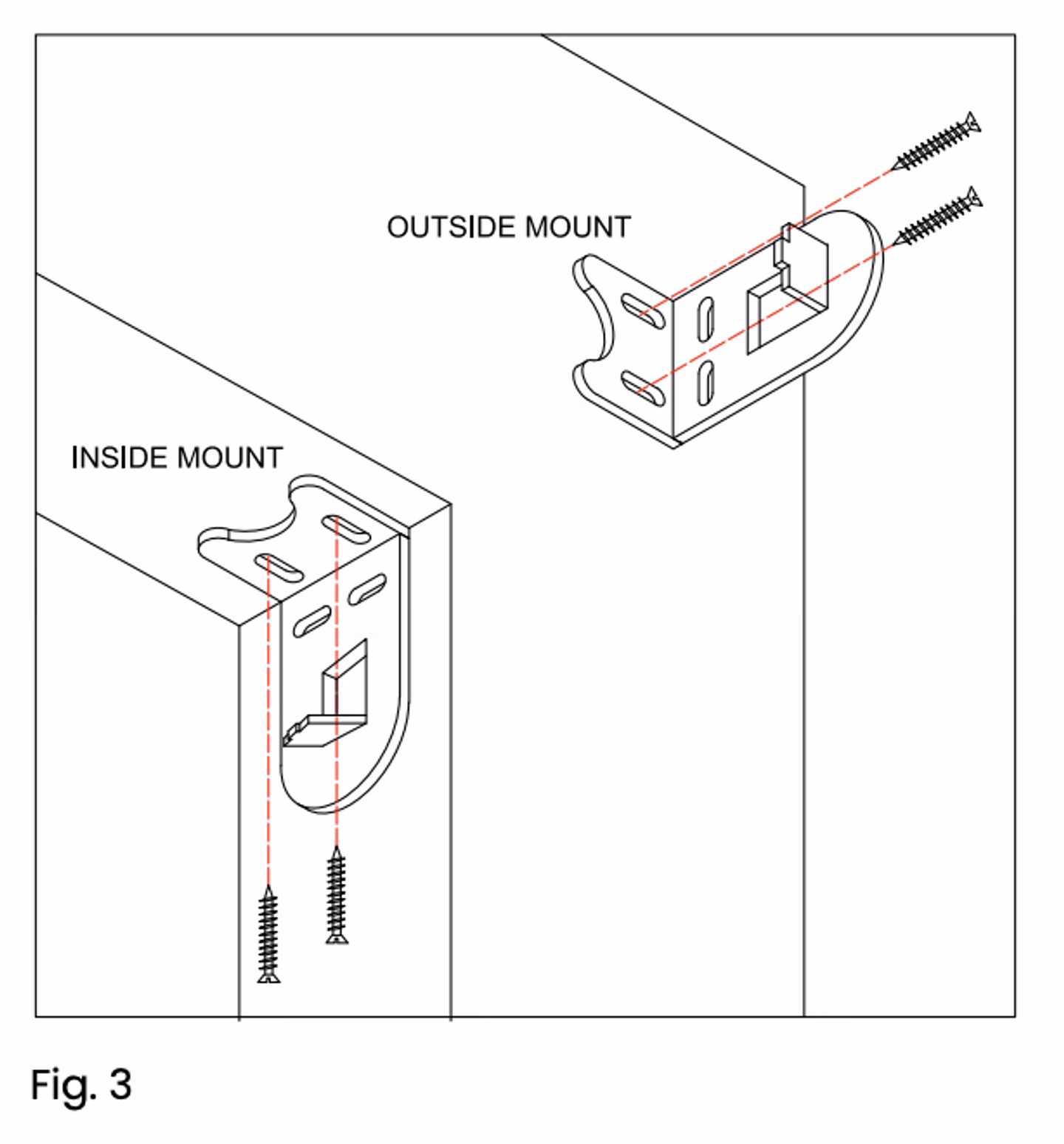

Mount each bracket using 2 screws.

• Inside mount: Screw through the top of the bracket into the window frame
• Outside mount: Screw through the back of the bracket into the wall or ceiling surface

Critical: Ensure both brackets are level before finalizing. If the brackets are uneven, the shade fabric can telescope and shift to one side as it rolls, which can damage the shade over time. Use your level to double-check alignment before fully tightening the screws.

With both brackets securely in place, install the roller shade:

Insert one end of the roller tube into the first bracket, then guide the other end into the second bracket until it clicks securely into place. The roller tube should sit firmly in both brackets without movement or wobble.

If the shade doesn't clip in smoothly, check that both brackets are at exactly the same depth from the wall or frame. Even a small difference can prevent the tube from seating correctly.

Before calling it done, verify two things:

• The shade material is centered — the fabric should hang evenly and not pull to one side
• The shade is horizontal — use your level to confirm the bottom rail hangs straight across

If the shade is pulling to one side, the brackets may not be perfectly level. Adjust as needed before fully tightening all screws.

Give the shade a few full raises and lowers to confirm it operates smoothly and returns to position correctly.

Questions about your installation? We're here to help. Contact us at [email protected] or book a free consultation, and we'll walk you through it.

Q: How long does it take to install a cordless roller shade?
A: Most customers complete a single roller shade installation in 15 to 30 minutes once they've gathered their tools and read through the instructions. Installing multiple shades goes faster after the first one.

Q: Do I need a professional to install roller shades?
A: No, Shade Love's cordless roller shades are designed for self-installation. Every order includes mounting hardware and instructions. You only need basic tools like a drill, level, and tape measure. If you have questions during installation, contact us at [email protected], and we'll help.

Q: What is the difference between inside mount and outside mount installation?
A: Inside mount brackets are installed inside the window frame, so the shade sits within the recess. This creates a clean, architectural look that highlights the window frame. Outside mount brackets are installed on the wall above the frame, so the shade covers the frame entirely. Outside mount is better for windows with limited depth, for maximizing light blockage, or for making windows appear larger.

Q: What screws do I use to install roller shade brackets?
A: Shade Love includes screws with every order. For mounting directly into wood studs or window frames, the included screws are appropriate. For mounting into drywall without a stud, use wall anchors rated for the weight of your shade; available at any hardware store. Fasteners are not included since different surfaces require different types.

Q: Why is my roller shade pulling to one side?
A: If the shade fabric telescopes or pulls to one side, the most likely cause is brackets that are not perfectly level. Remove the roller tube, check bracket alignment with a level, and adjust before reinstalling. Even a small height difference between brackets can cause the fabric to drift.

Q: Can cordless roller shades be mounted on the ceiling?
A: Yes, outside mount brackets can be installed on the ceiling above the window frame for a ceiling-mounted look. The installation process is the same; simply mount the brackets to the ceiling above the window instead of the wall.
